Electronic thermal properties#

In a metal, the electrons near the Fermi level are excited thermally, and they add to the free energy, the entropy and the heat capacity of the crystal. Phonopy computes these electronic contributions from the eigenvalues of an electronic structure calculation. They can be added to the phonon thermal properties in a quasi-harmonic calculation (see Quasi harmonic approximation) or used on their own.

Phonopy evaluates the free energy of Mermin’s finite-temperature theory of the electrons in the fixed density-of-states approximation. The eigenvalues are computed once, at the static lattice, and the same eigenvalues are used at every temperature. Only the occupation of the states changes with temperature. In a metal, states lie at the Fermi level and are thermally excited. In an insulator whose band gap is much larger than \(k_\mathrm{B} T\), the chemical potential lies in the gap, few states are thermally excited, and the contributions are negligible.

Mermin’s theory is described in the following publications.

  • N. D. Mermin, Phys. Rev. 137, A1441 (1965).

  • W. Kohn and L. J. Sham, Phys. Rev. 140, A1133 (1965).

  • R. G. Parr and W. Yang, Density-Functional Theory of Atoms and Molecules (Oxford University Press, 1989).

Overview#

The boxes are phonopy commands and API functions, the hexagon is the calculator run, and the rounded nodes are input and intermediate data.

        flowchart TD
    RUN{{"VASP static run<br/>one per crystal structure"}}
    RUN --> XML(["vasprun.xml-NN<br/>eigenvalues, k-point mesh, U"])

    XML --> EFE["phonopy-vasp-efe"]
    EFE --> FEV(["fe-v.dat, e-v.dat<br/>F_el(T) only"])
    FEV --> QHA["phonopy-qha --efe"]
    TP(["thermal_properties.yaml-NN"]) --> QHA

    XML --> ES["phonopy-vasp-efe --es"]
    ES --> H5(["electronic_states.hdf5"])
    H5 --> RQ["run_qha<br/>(electronic_structures=...)"]
    H5 --> API["compute_thermal_properties_by_tetrahedron"]
    API --> PROP(["F_el, S_el, C_el, mu, D(E_F)"])

The calculator is run once for each crystal structure, without atomic displacements. Use the same crystal structures as in the phonon calculations. vasprun.xml of this run holds the eigenvalues, the k-point mesh and the static total energy \(U\). For a calculator other than VASP, build ElectronicStates from its output; see Input: electronic states.

phonopy-vasp-efe computes \(U + F_\mathrm{el}(T) - F_\mathrm{el}(0)\) of every crystal structure and writes it to fe-v.dat. It also writes the volumes and \(U\) to e-v.dat. phonopy-qha --efe adds these free energies to the phonon free energies in thermal_properties.yaml. fe-v.dat has only the free energy. For this reason, Cp-temperature_polyfit.dat and gruneisen-temperature.dat of phonopy-qha are computed without the electronic entropy and heat capacity. See Electronic free energy.

phonopy-vasp-efe --es writes the electronic states of every crystal structure to electronic_states.hdf5 instead. run_qha reads them as electronic_structures and adds the free energy, the entropy and the heat capacity of the electrons to those of the phonons. See Electronic free energies from eigenvalues.

The same file can be used without a quasi-harmonic calculation. compute_thermal_properties_by_tetrahedron computes \(F_\mathrm{el}\), \(S_\mathrm{el}\), \(C_\mathrm{el}\), \(\mu\) and \(D(E_\mathrm{F})\) of one crystal structure; see Python API.

phonopy-anisotropic-qha takes the electronic states from its own dataset, aniso_qha_dataset.hdf5. See Anisotropic thermal expansion from free-energy minimization for how the dataset is made.

Equations#

The electronic structure calculation gives the eigenvalues \(\epsilon_{\mathbf{k}i}\), where \(\mathbf{k}\) is a k-point and \(i\) is a band index. Each k-point has a weight \(w_\mathbf{k}\), and the weights are normalized so that \(\sum_\mathbf{k} w_\mathbf{k} = 1\). The occupation of a state is given by the Fermi-Dirac distribution,

\[f_{\mathbf{k}i} = \left\{ 1 + \exp\left[ \frac{\epsilon_{\mathbf{k}i} - \mu}{k_\mathrm{B} T} \right] \right\}^{-1},\]

where \(\mu\) is the chemical potential and \(T\) is the temperature. In the fixed density-of-states approximation, the electrons occupy these states as independent particles. Their grand potential is

\[\Omega(T, \mu) = -g k_\mathrm{B} T \sum_\mathbf{k} w_\mathbf{k} \sum_i \ln \left\{ 1 + \exp\left[ -\frac{\epsilon_{\mathbf{k}i} - \mu}{k_\mathrm{B} T} \right] \right\}.\]

\(g\) is the number of electrons that one eigenvalue holds; see Spin degeneracy. The number of electrons in the cell is the derivative of the grand potential with respect to the chemical potential,

\[N = -\left( \frac{\partial \Omega}{\partial \mu} \right)_T = g \sum_\mathbf{k} w_\mathbf{k} \sum_i f_{\mathbf{k}i}.\]

The chemical potential depends on temperature. At each temperature it is determined so that \(N\) stays the same; see Chemical potential. The entropy of the electrons is the derivative of the grand potential with respect to temperature,

\[S_\mathrm{el}(T) = -\left( \frac{\partial \Omega}{\partial T} \right)_\mu = -g k_\mathrm{B} \sum_\mathbf{k} w_\mathbf{k} \sum_i \left[ f_{\mathbf{k}i} \ln f_{\mathbf{k}i} + (1 - f_{\mathbf{k}i}) \ln (1 - f_{\mathbf{k}i}) \right].\]

The free energy at a fixed number of electrons is

\[F_\mathrm{el}(T) = \Omega + \mu N.\]

Because \(\partial \Omega / \partial \mu = -N\), the entropy is also \(S_\mathrm{el} = -(\partial F_\mathrm{el} / \partial T)_N\). The energy of the electrons is \(E_\mathrm{el} = F_\mathrm{el} + T S_\mathrm{el}\), and inserting \(\Omega\), \(N\) and \(S_\mathrm{el}\) gives

\[E_\mathrm{el}(T) = g \sum_\mathbf{k} w_\mathbf{k} \sum_i f_{\mathbf{k}i} \epsilon_{\mathbf{k}i}.\]

The expressions for \(E_\mathrm{el}\) and \(S_\mathrm{el}\) are Eqs. (11) and (12) of C. Wolverton and A. Zunger, Phys. Rev. B 52, 8813 (1995). Phonopy evaluates the sums for \(E_\mathrm{el}\) and \(S_\mathrm{el}\), and obtains the free energy as \(F_\mathrm{el} = E_\mathrm{el} - T S_\mathrm{el}\). This free energy is equal to \(\Omega + \mu N\).

The heat capacity at constant volume is the temperature derivative of the energy,

\[C_\mathrm{el}(T) = \left( \frac{\partial E_\mathrm{el}}{\partial T} \right)_V.\]

Differentiating \(E_\mathrm{el}\) gives two terms. One term comes from the change of the occupations at a fixed chemical potential. The other term comes from the change of the chemical potential with temperature. That change is fixed by the condition that \(N\) does not change. Together they give

\[C_\mathrm{el}(T) = \frac{1}{k_\mathrm{B} T^2} \left( A_2 - \frac{A_1^2}{A_0} \right), \qquad A_n = g \sum_\mathbf{k} w_\mathbf{k} \sum_i f_{\mathbf{k}i} (1 - f_{\mathbf{k}i}) (\epsilon_{\mathbf{k}i} - \mu)^n.\]

The \(A_1^2/A_0\) term is the contribution of the change of the chemical potential. It is small when the density of states is nearly constant near the Fermi level, and it grows with the slope of the density of states there. Phonopy computes the heat capacity from this expression.

The sums above can also be written as integrals over energy. Each of them sums a function \(h\) of the eigenvalue, such as \(f_{\mathbf{k}i}\epsilon_{\mathbf{k}i}\) for the energy. With the electronic density of states per cell, \(D(E)\), the sum becomes an integral:

\[D(E) = g \sum_\mathbf{k} w_\mathbf{k} \sum_i \delta(E - \epsilon_{\mathbf{k}i}), \qquad g \sum_\mathbf{k} w_\mathbf{k} \sum_i h(\epsilon_{\mathbf{k}i}) = \int D(E) h(E) \, dE.\]

The k-point sum computes the left-hand side of this equation directly. The tetrahedron method builds \(D(E)\) and computes the right-hand side. Both are described in Integration over the Brillouin zone.

At low temperature, the entropy and the heat capacity are both linear in \(T\),

\[S_\mathrm{el} \approx C_\mathrm{el} \approx \gamma T = \frac{\pi^2}{3} k_\mathrm{B}^2 D(E_\mathrm{F}) T,\]

where \(D(E_\mathrm{F})\) is the density of states at the Fermi level and \(\gamma\) is the Sommerfeld coefficient. The tetrahedron method returns \(D(E_\mathrm{F})\) as dos_at_fermi_level, evaluated at the chemical potential at 0 K; see Python API.

The reference at 0 K#

The free energy is reported as \(F_\mathrm{el}(T) - F_\mathrm{el}(0)\). The total energy of the electronic structure calculation already contains the energy of the electrons at 0 K. Adding \(F_\mathrm{el}(T) - F_\mathrm{el}(0)\) to that total energy adds only the part that depends on temperature. In a quasi-harmonic calculation, the static energy \(U(V)\) is the total energy. The free energy at volume \(V\), before the phonon free energy is added, is

\[U(V) + F_\mathrm{el}(T; V) - F_\mathrm{el}(0; V).\]

\(U(V)\) has to be the energy at zero electronic temperature, because \(F_\mathrm{el}(T) - F_\mathrm{el}(0)\) adds the thermal occupation. A total energy computed with smeared occupations contains a contribution of the smearing. For this reason, the total energy extrapolated to zero smearing, such as energy(sigma->0) of VASP, is recommended as \(U(V)\). Fermi-Dirac smearing at the physical temperature is not recommended for \(U(V)\). Its total energy already contains the electronic free energy at that temperature, and adding \(F_\mathrm{el}(T) - F_\mathrm{el}(0)\) would count it twice.

Integration over the Brillouin zone#

The sums over k-points above can be computed in two ways.

The linear tetrahedron method builds the electronic density of states from the eigenvalues on the regular k-point mesh, and integrates the expressions above over energy. Besides the eigenvalues, it needs the k-point mesh, the irreducible k-points and the crystal structure.

The k-point sum evaluates the sums as they are written, over the irreducible k-points. It needs only the eigenvalues, the weights and the number of electrons, so it also works for an explicit list of k-points. It converges much more slowly with the number of k-points than the tetrahedron method. Only the states within a few \(k_\mathrm{B} T\) of the Fermi level contribute to the entropy and the heat capacity, and on a coarse mesh few eigenvalues fall in that range. The heat capacity at low temperature is the most affected. For this reason, use the tetrahedron method when the k-point mesh is available.

phonopy-vasp-efe uses the tetrahedron method for each vasprun.xml that describes a regular k-point mesh. It uses the k-point sum for a file with an explicit list of k-points, and for a file whose k-points cannot be mapped onto the mesh. The --k-point-sum option makes it use the k-point sum for every file. The command prints the method used for each file, and the # integration: line in the header of fe-v.dat records it. run_qha uses the k-point sum for the electronic states that do not carry kpoints, mesh and cell. phonopy-anisotropic-qha stops with an error for such states.

The tetrahedron method integrates only over an energy window from \(\mu_0 - W\) to \(\mu_0 + W\), where \(\mu_0\) is the chemical potential at 0 K and \(W\) is the half-width of the window. How \(\mu_0\) is found is described in Chemical potential. The states below the window are fully occupied at every temperature and add a constant to the energy, which cancels in \(F_\mathrm{el}(T) - F_\mathrm{el}(0)\). The states above the window are empty. By default, the half-width is

\[W = \max(0.5\ \mathrm{eV}, 16 k_\mathrm{B} T_\mathrm{max}),\]

where \(T_\mathrm{max}\) is the highest temperature. This width is chosen for the heat capacity. The integrand of the heat capacity contains \(f(1-f)(E-\mu)^2\), which decreases more slowly away from the Fermi level than the integrands of the energy and the entropy, so the heat capacity needs the widest window. The density of states is sampled on an energy grid of 0.5 meV spacing in the window. The window and energy_spacing parameters change \(W\) and the spacing. The --electronic-window and --electronic-spacing options of phonopy-vasp-efe and phonopy-anisotropic-qha do the same, and so do the electronic_window and electronic_spacing parameters of run_qha.

At low temperature, the Fermi-Dirac distribution changes over an energy range of a few \(k_\mathrm{B} T\). When \(k_\mathrm{B} T\) is smaller than the spacing, the energy grid does not resolve this change, and the entropy and the heat capacity become inaccurate. The default spacing of 0.5 meV is equal to \(k_\mathrm{B} T\) at about 6 K. For temperatures below that, set the spacing to \(k_\mathrm{B} T_\mathrm{min}\) or smaller, where \(T_\mathrm{min}\) is the lowest temperature above 0 K.

_images/electron-window.png

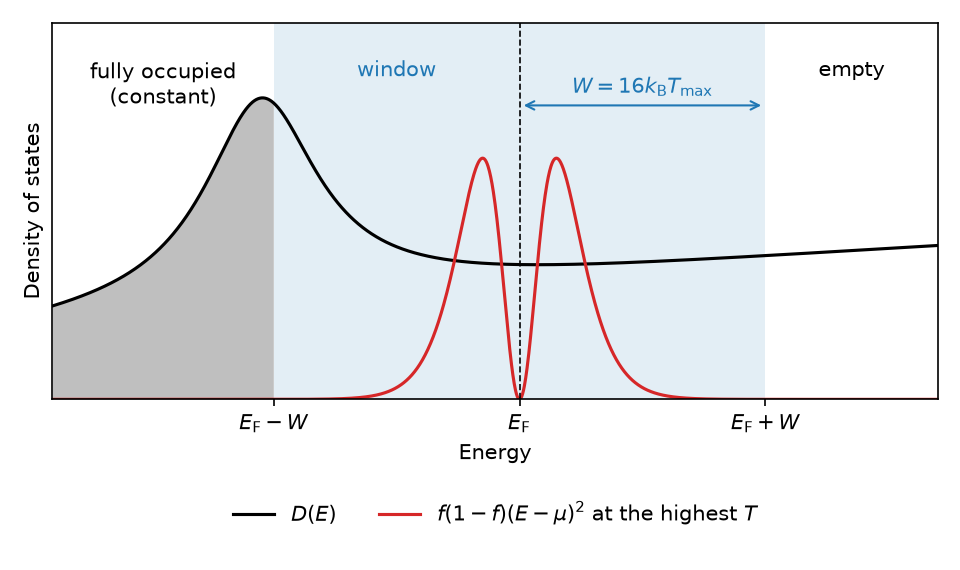

The energy window of the tetrahedron method, drawn for the case \(W = 16 k_\mathrm{B} T_\mathrm{max}\). The black curve is the density of states. The red curve is \(f(1-f)(E-\mu)^2\) at the highest temperature, drawn without the factor \(D(E)\). It decreases to nearly zero at the edges of the window. The states below the window are fully occupied at every temperature, and the states above the window are empty. \(E_\mathrm{F}\) in the figure is the chemical potential at 0 K, \(\mu_0\).#

The symmetrize_tetrahedra parameter averages the tetrahedron weights over the point group. The --symmetrize-tetrahedra option of phonopy-vasp-efe and the symmetrize_tetrahedra parameter of run_qha do the same. See Migrating toward phonopy v5 for this option and its default in the next major version.

Chemical potential#

The chemical potential \(\mu\) at temperature \(T\) is the root of the equation

\[g \sum_\mathbf{k} w_\mathbf{k} \sum_i f_{\mathbf{k}i}(\mu, T) = N,\]

where \(N\) is n_electrons of ElectronicStates. The left-hand side increases with \(\mu\), so the equation has one root. Phonopy finds the root by Brent’s method at every temperature.

The k-point sum evaluates the left-hand side as it is written, over the irreducible k-points. The root is searched for between the lowest and the highest eigenvalue.

The tetrahedron method replaces the sum by an integral over the density of states \(D(E)\),

\[\int D(E) f(E; \mu, T) \, dE = N,\]

and solves it in two steps.

At 0 K, the chemical potential \(\mu_0\) is the energy at which the integrated density of states is equal to \(N\),

\[\int_{-\infty}^{\mu_0} D(E) \, dE = N.\]

The tetrahedron method gives the integrated density of states as a continuous function of energy, so \(\mu_0\) does not depend on the energy grid. \(\mu_0\) is searched for within \(W\) of the Fermi energy reported by the electronic structure calculation, fermi_energy of ElectronicStates. When it is not given, the search starts from the energy up to which the eigenvalues hold \(N\) electrons. When \(\mu_0\) is not within that range, phonopy stops with an error that asks to widen the window. In that case, increase window, or --electronic-window on the command line.

At 0 K the occupation is a step at \(\mu_0\). The trapezoidal rule uses only the values at the grid points, so it integrates such a step as if the step were at the midpoint of the grid interval that contains it. For this reason, the energy grid is placed so that \(\mu_0\) is at the midpoint of two adjacent grid points. The grid has the same number of points on each side of \(\mu_0\).

At a finite temperature, the integral is evaluated on the energy grid in the window. The states below the window hold \(N_\mathrm{below}\) electrons at every temperature. This number is fixed by the condition at 0 K,

\[N_\mathrm{below} = N - \int_{\mu_0 - W}^{\mu_0} D(E) \, dE.\]

The chemical potential at temperature \(T\) is the root of

\[N_\mathrm{below} + \int_{\mu_0 - W}^{\mu_0 + W} D(E) f(E; \mu, T) \, dE = N.\]

Because the trapezoidal rule integrates the step as if it were at \(\mu_0\), the integral in \(N_\mathrm{below}\) counts the states up to \(\mu_0\), and \(\mu\) approaches \(\mu_0\) as \(T\) goes to 0 K.

Spin degeneracy#

\(g\) in the equations above is the number of electrons that one eigenvalue holds.

  • In a calculation without spin polarization, the eigenvalues have one spin channel and each eigenvalue holds two electrons, \(g = 2\).

  • In a collinear spin-polarized calculation, the eigenvalues have two spin channels and each eigenvalue holds one electron, \(g = 1\).

  • In a non-collinear calculation, the eigenvalues have one spin channel, but each spinor state holds one electron, \(g = 1\).

Phonopy infers \(g\) from the number of spin channels: \(g = 2\) for one channel and \(g = 1\) for two. A non-collinear calculation has one channel, so the inferred value is \(g = 2\), while the correct value is \(g = 1\). For a non-collinear calculation, set spin_degeneracy=1 in ElectronicStates.

Input: electronic states#

The input is ElectronicStates of phonopy.electron.states, one per crystal structure:

Field

Content

eigenvalues

Eigenvalues in eV, with shape (spin, k-points, bands).

weights

Weights of the k-points, with shape (k-points,). They need not be normalized.

n_electrons

Number of electrons in the cell.

fermi_energy

Fermi energy in eV reported by the calculation. Optional.

spin_degeneracy

\(g\). Optional; inferred from the number of spin channels when not given.

kpoints, mesh, cell

The irreducible k-points in fractional coordinates, the k-point mesh, and the crystal structure. Optional; all three are needed for the tetrahedron method.

volume, internal_energy

The cell volume and the static total energy. Optional; used by the quasi-harmonic calculation.

The results are per cell for which the eigenvalues were computed. The phonon thermal properties of phonopy are per primitive cell. When the eigenvalues are computed for a larger cell, such as the conventional cell of a centered lattice, the results have to be scaled by the volume of the primitive cell divided by the volume of that cell before they are added to the phonon thermal properties. phonopy-anisotropic-qha takes the electronic states of the conventional cell and does this scaling itself. run_qha does not scale them. It checks that the volumes of the electronic states are equal to the volumes of the primitive cells of the phonons, so for run_qha, compute the eigenvalues for the primitive cell.

For VASP, phonopy-vasp-efe reads vasprun.xml files and writes the electronic states of all of them to electronic_states.hdf5:

% phonopy-vasp-efe --es vasprun.xml-{00..10}

The k-points, the mesh and the crystal structure are stored when the vasprun.xml describes a regular k-point mesh. Read the file with read_electronic_states_hdf5, which returns a list of ElectronicStates.

Python API#

compute_thermal_properties_by_tetrahedron of phonopy.electron.tetrahedron computes the thermal properties by the tetrahedron method:

import numpy as np

from phonopy.electron.states import read_electronic_states_hdf5
from phonopy.electron.tetrahedron import compute_thermal_properties_by_tetrahedron

states = read_electronic_states_hdf5("electronic_states.hdf5")
temperatures = np.arange(0, 1001, 10.0)
properties = compute_thermal_properties_by_tetrahedron(states[0], temperatures)

properties.free_energy  # F_el(T) - F_el(0) in eV
properties.entropy  # S_el in eV/K
properties.heat_capacity  # C_el in eV/K
properties.internal_energy  # E_el(T) - E_el(0) in eV
properties.chemical_potential  # mu in eV
properties.dos_at_fermi_level  # D(E_F) in states/eV

dos_at_fermi_level is one value, the density of states at the chemical potential at 0 K. Each of the other fields is an array with one value per temperature. The temperatures do not have to include 0 K; the value at 0 K is computed anyway as the reference of the free energy.

The function takes three optional parameters.

  • window is the half-width \(W\) of the energy window in eV. The default is \(\max(0.5\ \mathrm{eV}, 16 k_\mathrm{B} T_\mathrm{max})\); see Integration over the Brillouin zone.

  • energy_spacing is the spacing of the energy grid in the window in eV. The default is 0.0005, that is, 0.5 meV.

  • symmetrize_tetrahedra averages the tetrahedron weights over the point group. The default is False.

Choose energy_spacing from the lowest temperature above 0 K, \(T_\mathrm{min}\). The entropy and the heat capacity are accurate when the spacing is \(k_\mathrm{B} T_\mathrm{min}\) or smaller. The default of 0.5 meV is \(k_\mathrm{B} T\) at about 6 K, so it is enough when \(T_\mathrm{min}\) is 6 K or higher. When \(T_\mathrm{min}\) is 1 K, \(k_\mathrm{B} T_\mathrm{min}\) is 0.086 meV, and a spacing of 0.05 meV is enough:

temperatures = np.arange(0, 301, 1.0)
properties = compute_thermal_properties_by_tetrahedron(
    states[0], temperatures, energy_spacing=0.00005
)

The tetrahedron method computes the density of states at every energy of this grid. The window of width \(2W\) holds \(2W\) divided by the spacing energies, so a finer spacing makes the computation take longer.

The values are per cell for which the eigenvalues were computed. The phonon thermal properties of phonopy are in kJ/mol and J/K/mol per primitive cell. To compare with them, first scale the values to the primitive cell as described in Input: electronic states. Then multiply the free energy by get_physical_units().EvTokJmol, and the entropy and the heat capacity by get_physical_units().EvTokJmol * 1000. get_physical_units is in phonopy.physical_units.

compute_thermal_properties_by_kpoint_sum of phonopy.electron.kpoint_sum takes the electronic states and the temperatures, and computes the thermal properties by the k-point sum. It has no energy grid, so it takes none of the three optional parameters. Both functions return ElectronicThermalProperties. The k-point sum gives no density of states, and its dos_at_fermi_level is None.
